MJ BOX – JANUS interconnection modules

The JANUS MJBOX modules are accessory devices designed to make the wiring of JANUS J and J TRX, JANUS M and M TRX light curtains fast and safe, and to provide the main controls necessary for their operation close to the protected gate.

In addition to the guided contacts safety relays piloted and monitored by the light curtain, terminal boards for connecting the cables, bridges and dip-switch for the configuration of the light curtain itself are also in–cluded inside. 4 models are available:

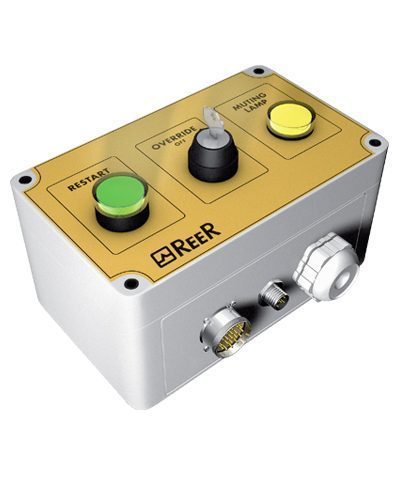

MJB1 – 1360930

  • Safety Outputs: 2 N.O. 2A 250 VAC contacts
  • Override selector
  • Muting lamp
  • Start/Restart button with outputs status lamp
  • Connectors: M23 – 19 poles and M12 – 5 poles

MJB3 – 1360932

  • Safety Outputs: 2 N.O. contacts + 1 N.C. contact 2A 250 VAC (*2)
  • Override selector
  • Muting lamp
  • Start/Restart button with outputs status lamp
  • Connectors: M23 – 19 poles and M12 – 5 poles

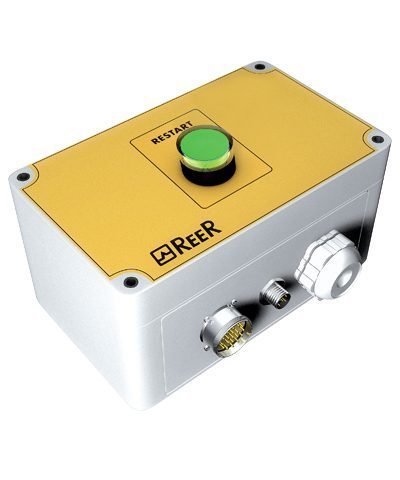

MJB2 – 1360931

  • Safety Outputs: 2 N.O. 2A 250 VAC contacts
  • Start/Restart button with outputs status lamp
  • Connectors: M23 – 19 poles and M12 – 5 poles

MJB4 – 1360933

  • Safety Outputs: 2 N.O. contacts + 1 N.C. contact 2A 250 VAC
  • Start/Restart button with outputs status lamp
  • Connectors: M23 – 19 poles and M12 – 5 poles

The diagram here below illustrates the possible combinations of JANUS models and modules MJBOX
